When Are Fire Collars Required: Why and How They Work

When Are Fire Collars Required

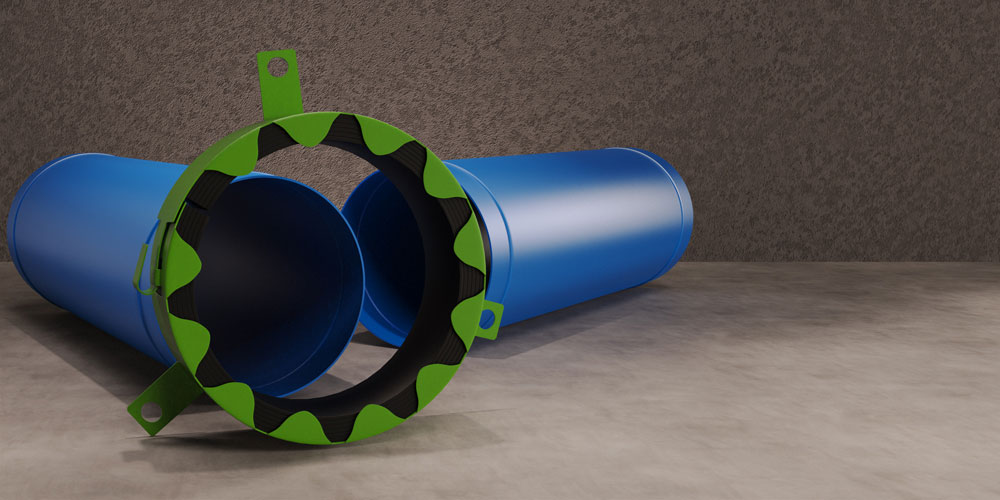

What is a Fire Collar?

A fire collar is a vital component for fire protection. Designed to protect buildings, it prevents fire and smoke from spreading through cavities and voids in combustible pipework.

Typically, fire collars are installed around pipes in compartment floors and walls. Their key reactive component is intumescent material, which lines a metal outer casing.

Engineers design the intumescent material in a fire collar to expand inward in response to heat. This action closes the void left by a combustible pipe that has softened and melted away. This expansion effectively seals the void left by the pipe, preventing the passage of flames and smoke from one compartment to another.

Both in commercial and residential settings, especially where plastic pipes are used, fire collars are indispensable.

Plastic, due to its combustible nature, can melt during a fire, creating openings that facilitate the spread of fire. The fire collar addresses this risk by expanding to fill these openings, thus reinforcing the compartmentalization of the building and bolstering its overall fire resistance.

The Essential Role of Fire Collars in Passive Fire Protection

Fire collars serve a pivotal role in passive fire protection strategies, effectively containing fires within their compartment or origin.

By sealing around pipes, these devices prevent the spread of fire and smoke through building penetrations. This containment is crucial in slowing down fire progression, buying valuable time for evacuation and firefighting efforts.

Using fire collars are key for a complete fire safety plan. It helps buildings meet fire protection standards and gives peace of mind to occupants and owners.

Understanding Fire Collar Workings: Intumescent Technology Explained

The efficacy of fire collars hinges on the remarkable properties of intumescent materials.

These materials are engineered to react to heat by expanding multiple times their original size, creating a robust, fire-resistant seal. When a fire breaks out, the heat causes the intumescent material in the fire collar to swell, sealing off the space around the pipe. This expansion blocks not only flames but also hot gases and toxic smoke, significantly enhancing the fire resistance of the penetration.

This technology is a cornerstone in modern fire protection, providing a reliable and effective means of enhancing building safety.

When are Fire Collars Required?

In Ireland, the incorporation of fire collars in building design is strictly regulated under fire safety standards and building codes.

These regulations stipulate the necessity of fire collars wherever pipes penetrate fire-resistant barriers, particularly in cases involving plastic piping systems. This requirement is crucial in residential, commercial, and industrial buildings, where the risk of fire spreading through pipe penetrations is significant.

Following Irish standards is crucial for safety and building integrity, not just a legal duty. Fire collar rules in Irish regulations help keep buildings compartmentalized, containing fires and stopping their spread. For architects, builders, and property managers in Ireland, understanding and implementing these fire safety norms is essential. It’s not only about legal compliance but also about upholding a commitment to the safety of building occupants and the broader community.

Fire Collar Installation Guide

Our trained professionals at Alpha Fire Protection, excel in the precise installation of fire collars, a critical step in ensuring their effectiveness.

The process starts with choosing the right collar for the specific pipe material and diameter. Our team then expertly secures the collar at the penetration point, either in a wall or floor, guaranteeing a correct installation and accurate fit. We emphasize the use of high-quality sealants to reinforce the seal, aligning with Ireland’s rigorous fire safety standards. Our commitment extends beyond installation; we also provide regular inspections and maintenance, ensuring the long-term integrity and effectiveness of the fire collars, thus upholding the highest level of fire safety for your property.

Choosing the Right Fire Collar for Your Pipe

We understand that each project has unique requirements, especially when selecting the most suitable fire collar.

Our approach involves a thorough assessment of the specific needs of each job. We recognize the vast array of fire collar types available, each designed for different pipe materials and fire protection levels. Our expertise lies in identifying and utilizing the most relevant collar that guarantees optimal performance for the particular application. Whether it’s for PVC CPVC, PEX or ABS, our team ensures the chosen fire collar aligns perfectly with the project’s specifications, thereby delivering tailored and effective fire protection solutions.

Maintaining and Inspecting Fire Collars for Long-Term Safety

At Alpha Fire Protection, we emphasise the importance of regular maintenance and inspection of fire collars to ensure their long-term effectiveness.

Our team conducts detailed assessments to check the integrity and functionality of these essential safety components. Routine inspections help identify any signs of wear or damage early, allowing for timely repairs or replacements. Our proactive approach aligns with Ireland’s fire safety regulations and offers our clients peace of mind, knowing their buildings have continuous protection against fire risks. Reliable maintenance is key to the enduring performance of fire collars in any fire protection strategy.

Innovations in Fire Collar Technology: Looking Ahead at Alpha Fire Protection

Alpha Fire Protection is at the forefront of innovation in fire collar technology.

Our commitment is to use only the finest, certified products in the industry, guided by prestigious certifications like IFC Certification, ASFP Membership, VCR Certification, and CIF Membership.

These accreditations represent our dedication to quality and safety. We continuously update our product range with the latest advancements, ensuring that our fire collars offer superior protection.

By staying ahead of technological developments, we provide our clients with the most effective and up-to-date fire sealing solutions, reinforcing our reputation as a leader in fire safety innovation.
